Professional Tethered UAV drone System UTP100 Series For Permanent Surveillance

FOB Reference Price:Get Latest Price
$50,000.00 - $160,000.00 / Pieces | 1 Piece/Pieces (Min. Order)
Model Number:
W7P3X6U9
Report Suspicious Activity
Overview
Quick Details
Type:
System
Condition:
New
Year Built:
2017
Place of Origin:
Guangdong, China
Flight time:
>8h
Altitude hold:
±2m
Cable length:
100m
Cable release mode:
key automatic
Dimensions:
620*400*600mm
Supply Ability
Supply Ability:
1000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Plywood case ; Honeycomb cardboard
Port
Shenzhen
Product Description

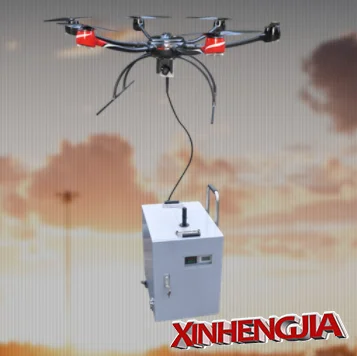

Professional Tethered UAV drone System UTP100 Series For Permanent Surveillance:

Base on our professional multi-rotor UX6L aircraft with mature technology,Tethered UAV platform features for long-time fly. Supported by UX6L multi-rotor aircraft, tethered vehicle mount power, intelligent cable casing, and ground big power shift module, the platform is ideal for long-time stay without flight time testriction caused by battery capacity.

Products Show

Professional Tethered UAV drone System UTP100 Series For Permanent Surveillance:



Advantages

Professional Tethered UAV drone System UTP100 Series For Permanent Surveillance:

Day and night missions
Radio relay
Crisis management
Site protection
Traffic surveillance
Large-scale events security
Forest surveillance
Industry monitoring
Air-quality monitoring
Main Spec

Professional Tethered UAV drone System UTP100 Series For Permanent Surveillance:

Technical Parameters
Max take-off weight
15.2kg
Flight time
>8h
Tethered flight altitude
100m
Altitude hold
±2m
Hovering accuracy
±1.5m
Course angle accuracy
±3°
Emprgency landing time
<1min
Deploy landing time
<4min
Ground Control Parameters
Cable length
100m
Cable release mode
key automatic
Input voltage
AC220V±10%@50Hz
Input current
<15A
Input power
<3000W
Output voltage
DC375V±10%
Output current
<10A
Output power
<1600W
Weight
48kg
Dimensions
620*400*600mm
Flight Platform Parameters
Module
UX6L
Airborne power supply
1500W
Backup battery
5200mAh 35C
Weight
<10Kg
Diagonal wheelbase
1600mm
Max payload weight
3kg
Tether Cable Parameters
Insulation
2000V
Tensile
>50kg
Hectometer resistance
<2Ω
Carrying capscity
15A
Weight
2kg@100m
Fiber properties
single mode 10Gb/s*
Why Choice us

Safety:
Fault tolerant flight control algorithm to protect motors and propeller. Data link system. FUTABA, GPRS triple control connection.
Professional:
High performance carbon fiber material with integrated molding; rainproof design with stable performance; precise altitude control; dual mission loads optional(HD zoom camera/thermal imaging camera).
Easy:
A highly modular flying system; easy to keep the device inside luggage or a flight case due to our quick release or folding constructor design.3D tasks and FPV ground controller support one key take-off/landing, auto return, auto hovering, etc.
Long Endurance:
Large capacity Li-Po battery helps to get more than 60 minutes flight time
Long Distance:
Superior power redundancy; flight distance up to 40km.

Other UAV

Large voyage fixed wing police UAV drone


UF100 Four Rotor Police UAV drone


Four Rotor Foldable UAV drone UZ4M

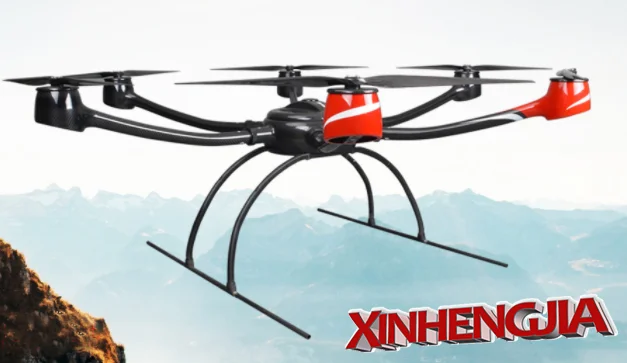

Industrial Six Rotor UAV drone UX6L

Application

Day and night missions
Radio relay
Crisis management
Site protection
Traffic surveillance
Large-scale events security
Forest surveillance
Industry monitoring
Air-quality monitoring




FAQ

Q: Who are you?

A: We are a high tech product supply chain company, wholesale top quality china high tech products.

Q: How long is your delivery time?

A: Generally it is 15-20 days  after deposit.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A:   T/T, L/C, open account etc.
